Datos del producto:
Pago y Envío Términos:
|
| Alta luz: | 50mm Lens Antenna,40.0GHz Lens Antenna,80mm Length Lens Antenna |
||
|---|---|---|---|

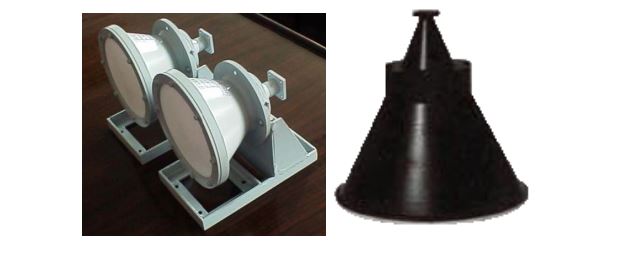

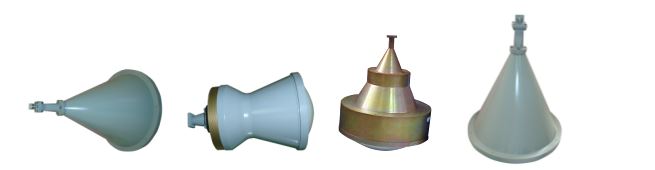

CWJ fabrica una serie de antena de lente tal como antena de lente del cuerno cónico, antena de lente del cuerno de la pirámide, tipo antena de lente, antena de lente de concentración del punto, etc. de la radiación de la alimentación. Podemos proporcionar el diseño, procesando y probando. Llámenos por favor y discuta sus necesidades especiales con uno de nuestros ingenieros de ventas.

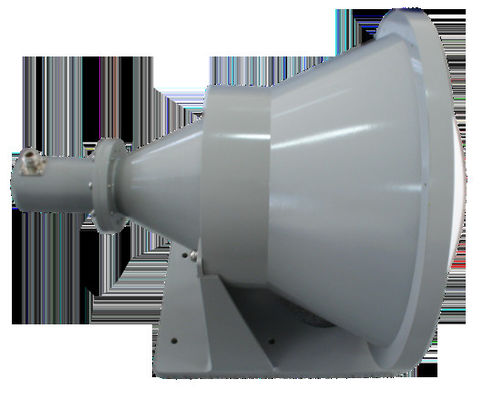

Antena de lente del cuerno cónico
】 De las especificaciones del 【
| Modelo No * |
Gama de Freq (Gigahertz) |
Aumento (DB) |
Nivel de menor importancia (DB) | Conector |
Diámetro de la boca (Φmm) |
Longitud (milímetro) |
|
| E | H | ||||||
| CWJ320LHA50 | 26.5~40.0 | 21 | ≤-22 | ≤-30 | FBP-320 | 50 | 80 |
| CWJ320LHA80 | 26.5~40.0 | 25 | ≤-22 | ≤-30 | FBP-320 | 80 | 100 |
| CWJ320LHA100 | 26.5~40.0 | 27 | ≤-22 | ≤-30 | FBP-320 | 100 | 120 |
| CWJ320LHA150 | 26.5~40.0 | 31 | ≤-22 | ≤-30 | FBP-320 | 150 | 170 |
| CWJ320LHA170 | 26.5~40.0 | 32 | ≤-22 | ≤-30 | FBP-320 | 170 | 190 |
| CWJ320LHA200 | 26.5~40.0 | 33 | ≤-22 | ≤-30 | FBP-320 | 200 | 220 |
| CWJ260LHA50 | 22.0~33.0 | 19 | ≤-22 | ≤-30 | FBP-260 | 50 | 80 |
| CWJ260LHA80 | 22.0~33.0 | 23 | ≤-22 | ≤-30 | FBP-260 | 80 | 100 |
| CWJ260LHA100 | 22.0~33.0 | 25 | ≤-22 | ≤-30 | FBP-260 | 100 | 120 |
| CWJ260LHA150 | 22.0~33.0 | 29 | ≤-22 | ≤-30 | FBP-260 | 150 | 170 |
| CWJ260LHA170 | 22.0~33.0 | 30 | ≤-22 | ≤-30 | FBP-260 | 170 | 190 |
| CWJ260LHA200 | 22.0~33.0 | 31 | ≤-22 | ≤-30 | FBP-260 | 200 | 220 |
| CWJ220LHA80 | 18.0~26.5 | 21 | ≤-22 | ≤-30 | FBP-220 | 80 | 100 |
| CWJ220LHA100 | 18.0~26.5 | 23 | ≤-22 | ≤-30 | FBP-220 | 100 | 120 |
| CWJ220LHA150 | 18.0~26.5 | 27 | ≤-22 | ≤-30 | FBP-220 | 150 | 170 |
| CWJ220LHA170 | 18.0~26.5 | 28 | ≤-22 | ≤-30 | FBP-220 | 170 | 190 |
| CWJ220LHA200 | 18.0~26.5 | 29 | ≤-22 | ≤-30 | FBP-220 | 200 | 220 |
| CWJ180LHA100 | 14.5~22.0 | 22 | ≤-22 | ≤-30 | FBP-180 | 100 | 120 |
| CWJ180LHA150 | 14.5~22.0 | 25 | ≤-22 | ≤-30 | FBP-180 | 150 | 170 |
| CWJ180LHA170 | 14.5~22.0 | 27 | ≤-22 | ≤-30 | FBP-180 | 170 | 190 |
| CWJ180LHA200 | 14.5~22.0 | 28 | ≤-22 | ≤-30 | FBP-180 | 200 | 220 |
| CWJ140LHA150 | 12.5~18.0 | 23 | ≤-22 | ≤-30 | FBP-140 | 150 | 170 |
| CWJ140LHA170 | 12.5~18.0 | 25 | ≤-22 | ≤-30 | FBP-140 | 170 | 190 |
| CWJ140LHA200 | 12.5~18.0 | 26 | ≤-22 | ≤-30 | FBP-140 | 200 | 220 |
| CWJ140LHA250 | 12.4~18.0 | 28 | ≤-22 | ≤-30 | FBP-140 | 250 | 270 |
| CWJ120LHA250 | 10.0~15.0 | 26 | ≤-22 | ≤-30 | FBP-140 | 250 | 270 |
| CWJ100LHA250 | 8.2~12.4 | 25 | ≤-22 | ≤-30 | FBP-100 | 250 | 270 |
Antena de lente del cuerno de la pirámide
】 De la especificación del 【
| Modelo No * |
Gama de Freq (Gigahertz) |
Aumento (DB) |
Nivel de menor importancia (DB) |
Conector |
Diámetro de la boca (Φmm) |
Longitud (milímetro) |
|
| E | H | ||||||
| CWJ140LHA22A | 11,9~18,0 | 22 | ≤-22 | ≤-30 | FBP-140 | 138×108 | 205 |
| CWJ260LHA26A | 21,7~33,0 | 26 | ≤-22 | ≤-30 | FBP-260 | 106×106 | 175 |
Antena de lente de concentración del cuerno del punto
】 De la especificación del 【
| Modelo No * |
Gama de Freq (Gigahertz) |
Longitud focal (milímetros) | Conector |
Diámetro de la boca (Φmm) |
| CWJ320PLHA | 26.5~40.0 | 50-500 | FBP-320 | 50-300 |
| CWJ260PLHA | 21.7~33.0 | 50-500 | FBP-260 | 50-300 |
| CWJ220PLHA | 17.6~26.7 | 50-500 | FBP-220 | 50-300 |
| CWJ180PLHA | 14.5~22.0 | 50-500 | FBP-180 | 50-300 |
| CWJ140PLHA | 11.9~18.0 | 80-700 | FBP-140 | 50-400 |
| CWJ120PLHA | 9.84~15.0 | 80-700 | FBP-120 | 50-400 |
| CWJ100PLHA | 8.2~12.4 | 80-700 | FBP-100 | 50-400 |
| CWJ84PLHA | 6.57~9.99 | 80-900 | FBP-84 | 50-500 |
| CWJ70PLHA | 5.85~8.2 | 80-900 | FBP-70 | 50-500 |
| CWJ58PLHA | 4.9~7.0 | 80-900 | FBP-58 | 50-500 |
| CWJ48PLHA | 4~6 | 80-900 | FBP-48 | 50-500 |
| CWJ40PLHA | 3,3 ~4,9 | 80-900 | FBP-40 | 50-500 |
| CWJ32PLHA | 2.6~4 | 80-900 | FBP-32 | 50-500 |
